Product Description:
Solid phase extraction (SPE) is a physical extraction process that includes liquid and solid phases. In the extraction process, the adsorption force of the solid to the analyte is greater than the sample mother liquid. When the sample passes through the SPE column, the analyte is adsorbed on the solid surface, and other components pass through the column with the sample mother liquid, and then the analyte is removed with an appropriate solvent Eluted down. SPE has a wide range of applications, such as the analysis of biological fluids including blood, urine, serum, plasma and cytoplasm; the analysis of milk processing, wine, beverages and juices; the analysis and monitoring of water resources; fruits, vegetables, grains, and various plant tissues. Animal tissues; solid medicines such as tablets. Analysis of pesticide and herbicide residues in fruits, vegetables and foods, analysis of antibiotics and clinical drugs, etc.

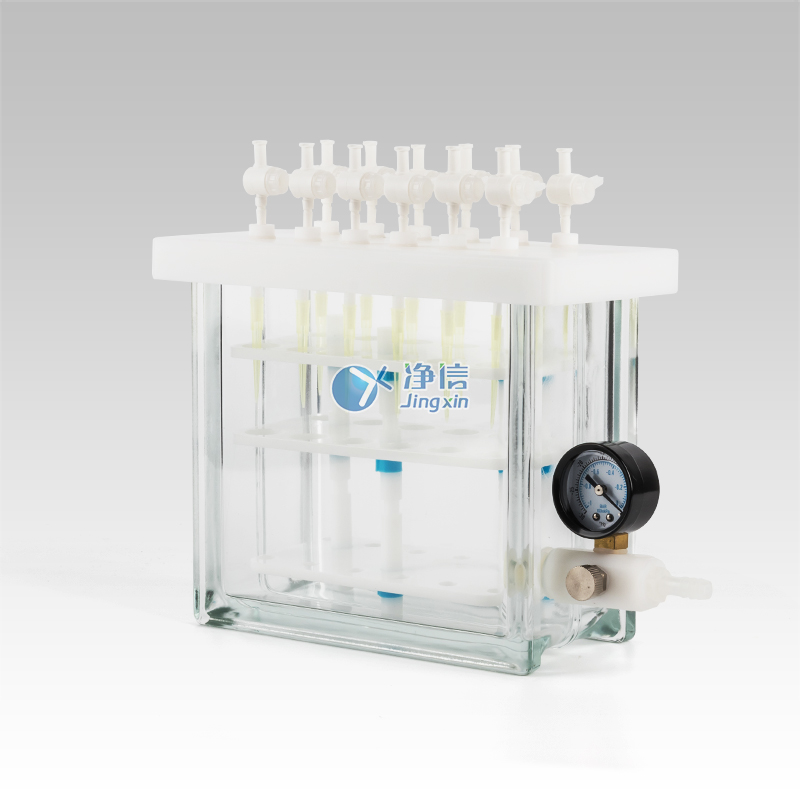

FG series solid phase extraction instrument is an instrument product independently developed by our company. It is well received by users for its beautiful appearance, compactness, practicality and low price. It can be equipped with DP series vacuum pump at the same time to achieve the purpose of pressure extraction.
Specifications and ordering information:
Model | Number of holes | Gas control method | Dimensions | Pressure display |
FG-12A | 12 | Unified control | 200*160*180 | Without pressure gauge |
FG-12B | 12 | Unified control | 200*160*180 | Has a pressure gauge |
FG-12C | 12 | Independent control of each hole | 250*140*180 | Without pressure gauge |
FG-12D | 12 | Independent control of each hole | 250*140*180 | Has a pressure gauge |
FG-24A | 24 | Unified control | 250*180*180 | Has a pressure gauge |
FG-24B | 24 | Independent control of each hole | 250*180*180 | Has a pressure gauge |
Optional | Test tube trays or holders with different apertures and numbers of holes can be customized | |||
Customized | Optional DP-01 vacuum pump or DP-03 vacuum pump for supporting use | |||
